Product Details

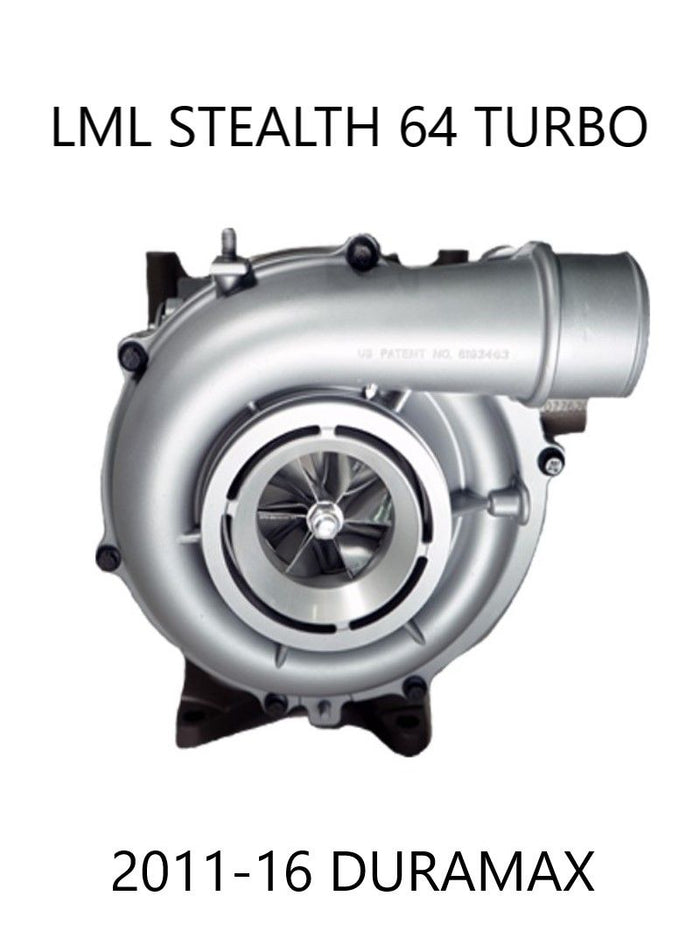

The LML Stealth 64 is a stock appearing, direct replacement for your 2011 – 2016 LML Duramax. The upgraded billet compressor & turbine wheel are perfectly matched to our custom cut compressor cover and exhaust housing. Giving you the most efficient and best-performing turbo for your truck. Great for daily driving, recreational towing and all-around performance!
Features & Benefits
- 650+ RWHP Peak
- Billet Compressor & Turbine Wheel
- 360-degree Thrust Bearing
- Quick Spool-Up
- Direct Bolt-On
- Great Daily Driving/Towing
|
Fitment Specifications |
|||||||||
|
Year |
OEM |
Models |
OEM Part #(s) |
||||||
|
2011-2016 |
Chevy |
2500, 3500 |
§ 848212-5002S § 12642314 § 12642129 § 800799-0002 § 800799-0003 § GT3788VA § Garret 3788
|
||||||
|
2011-2016 |
GMC |
2500, 3500 |
|||||||
|
Measurement Specifications |
|||||||||
|
Compressor - Wheel Inducer |
Compressor - Inducer Bore |
Compressor - Wheel Blade Count |
Turbine - Wheel Exducer |
Turbine - Wheel Inducer |
Turbine - Wheel Blade Count |
Peak Power |
|||
|
63mm |
64mm |
6 + 6 |
67mm |
73mm |
10 |
650 RWHP |
|||
|
Maximum Recommended Boost Pressure (psi) for LML Stealth 64 |
|||
|
Altitude (ft) |
Barometric Pressure (psi) |
Baro (inHG) |
Max Safe Boost (psi) |
|
-1000 |
15.2 |
31.02 |
38.0 |
|
0 |
14.7 |
29.88 |
36.8 |
|
1000 |
14.2 |
28.86 |
35.5 |
|
2000 |
13.7 |
27.84 |
34.3 |
|
3000 |
13.2 |
26.83 |
33.0 |
|
4000 |
12.7 |
25.81 |
31.8 |
|
5000 |
12.2 |
24.8 |
30.5 |
The LML Stealth 64 is a stock appearing, direct replacement for your 2011 – 2016 LML Duramax. The upgraded billet compressor & turbine wheel are perfectly matched to our custom cut compressor cover and exhaust housing. Giving you the most efficient and best-performing turbo for your truck. Great for daily driving, recreational towing and all-around performance!
