The LML Stealth 64 is a stock appearing, direct replacement for your 2011 – 2016 LML Duramax. The upgraded billet compressor & turbine wheel are perfectly matched to our custom cut compressor cover and exhaust housing. Giving you the most efficient and best-performing turbo for your truck. Great for daily driving, recreational towing and all-around performance!

Features & Benefits

650+ RWHP Peak
Billet Compressor & Turbine Wheel
360-degree Thrust Bearing
Quick Spool-Up
Direct Bolt-On
Great Daily Driving/Towing

Fitment Specifications
Year		OEM	Models		OEM Part #(s)
2011-2016		Chevy	2500, 3500		§ 848212-5002S § 12642314 § 12642129 § 800799-0002 § 800799-0003 § GT3788VA § Garret 3788
2011-2016		GMC	2500, 3500
Measurement Specifications
Compressor - Wheel Inducer	Compressor - Inducer Bore			Compressor - Wheel Blade Count		Turbine - Wheel Exducer	Turbine - Wheel Inducer	Turbine - Wheel Blade Count	Peak Power
63mm	64mm			6 + 6		67mm	73mm	10	650 RWHP

Maximum Recommended Boost Pressure (psi) for LML Stealth 64
Altitude (ft)	Barometric Pressure (psi)	Baro (inHG)	Max Safe Boost (psi)
-1000	15.2	31.02	38.0
0	14.7	29.88	36.8
1000	14.2	28.86	35.5
2000	13.7	27.84	34.3
3000	13.2	26.83	33.0
4000	12.7	25.81	31.8
5000	12.2	24.8	30.5

The LML Stealth 64 is a stock appearing, direct replacement for your 2011 – 2016 LML Duramax. The upgraded billet compressor & turbine wheel are perfectly matched to our custom cut compressor cover and exhaust housing. Giving you the most efficient and best-performing turbo for your truck. Great for daily driving, recreational towing and all-around performance!

* ALL PICTURES SHOWN ARE FOR ILLUSTRATION PURPOSE ONLY. ACTUAL PRODUCT MAY VARY DUE TO PRODUCT ENHANCEMENT.

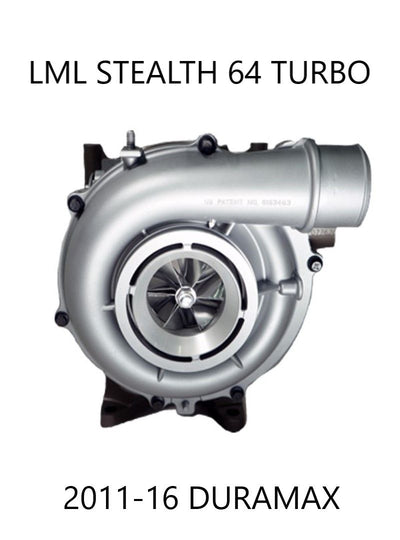

LML STEALTH 64 TURBO
